碼垛機器人
您所在的位置:首頁>> 產品中心 >>  碼垛機器人
40KG硫磺包裝碼垛生產線40KG sulfur packaging and palletizing production line
發布時間:2024-04-24 10:27:13 | 瀏覽次數:


"40KG硫磺包裝碼垛生產線"通常指的是一個完整的工業自動化系統,用于對重量為40千克的硫磺產品進行高效、安全的包裝,并在完成包裝后進行有序堆疊(碼垛)以便于倉儲、運輸。這樣的生產線通常包含以下幾個核心組成部分:

1. 原料供給系統

? 硫磺原料存儲設施(如料倉或儲罐),確保穩定的原料供應。

? 輸送設備(如螺旋輸送機、皮帶輸送機或氣力輸送系統),將硫磺原料從存儲設施輸送到包裝環節。

? 自動定量包裝設備

? 稱重系統

:精確測量每袋硫磺的重量,確保達到40千克的標準。這通常包括電子秤、傳感器等設備。

? 填充裝置

:將稱量好的硫磺裝入包裝袋中,可能采用螺旋給料器、振動式定量給料機等設備,保證填充過程快速且均勻。

? 封口設備

:對裝滿硫磺的包裝袋進行密封,通常采用熱封機、縫包機或熱熔膠封口機等,確保包裝袋密封嚴密,防止硫磺泄漏。

? 質量檢測與標識系統

? 重量復檢

:在封口后再次對包裝袋進行稱重,確認是否達到標準重量,剔除超重或欠重的產品。

? 包裝袋外觀檢查

:通過機器視覺系統檢測包裝袋有無破損、污染等缺陷。

? 噴碼/貼標

:在合格的包裝袋上噴印生產日期、批次號、條形碼、二維碼等信息,便于追溯管理。

? 碼垛系統

? 機器人碼垛機

:采用工業機器人(如六軸機器人),配備專用抓手或吸盤,根據預設的碼垛模式,精準、高效地將包裝好的硫磺袋放置到托盤上,形成規整的垛型。

? 輸送線

:包括皮帶輸送機、滾筒輸送機等,將包裝好的硫磺袋從包裝工位輸送到碼垛工位,并在碼垛完成后將滿載硫磺的托盤輸送到指定位置等待搬運。

? 控制系統

? 整個生產線通常采用中央控制系統,集成PLC(可編程邏輯控制器)、HMI(人機交互界面)等設備,實現對各個設備的協調控制、數據采集、故障報警、生產統計等功能,確保生產線的穩定運行和高效管理。

? 安全環保措施

? 硫磺在處理過程中可能會產生粉塵,因此生產線應配備有效的除塵設備(如脈沖布袋除塵器)以及良好的通風系統,確保工作環境的安全與環保。

? 遵守相關的防火防爆規定,如使用防爆電氣設備、設置消防設施等。

綜上所述,一條40KG硫磺包裝碼垛生產線是一個集原料供給、定量包裝、質量檢測、自動化碼垛及智能化控制于一體的現代化工業系統,旨在提高生產效率、保證產品質量、降低勞動強度,并符合安全生產與環保要求。

"40KG sulfur packaging and palletizing production line" usually refers to a complete industrial automation system, which is used for efficient and safe packaging of sulfur products weighing 40kg, and orderly stacking (palletizing) after completion of packaging for easy storage and transportation. Such a production line usually consists of the following core components:

1. Raw material supply system

? Sulphur raw material storage facilities (e.g. silos or tanks) to ensure a stable supply of raw materials.

? Conveying equipment (e.g., screw conveyors, belt conveyors, or pneumatic conveying systems) to transport sulfur raw materials from storage facilities to packaging.

? Automatic quantitative packaging equipment

? Weighing systems

: Accurately measure the weight of each bag of sulphur to ensure that the standard of 40 kg is met. This typically includes devices such as electronic scales, sensors, etc.

? Filling devices

: Weigh the sulfur into the bag, and may use equipment such as screw feeder and vibrating quantitative feeder to ensure that the filling process is fast and uniform.

? Sealing equipment

: Seal the bag filled with sulfur, usually using a heat sealing machine, a sewing machine or a hot melt adhesive sealing machine to ensure that the bag is tightly sealed and prevent sulfur leakage.

? Quality inspection and identification systems

? Weight review

After sealing, weigh the bag again to confirm whether the standard weight is reached, and remove overweight or underweight products.

? Visual inspection of the bag

: Detect whether the packaging bag is damaged, polluted and other defects through the machine vision system.

? Coding/labeling

: Print the production date, batch number, barcode, two-dimensional code and other information on the qualified packaging bags to facilitate traceability management.

? Palletizing systems

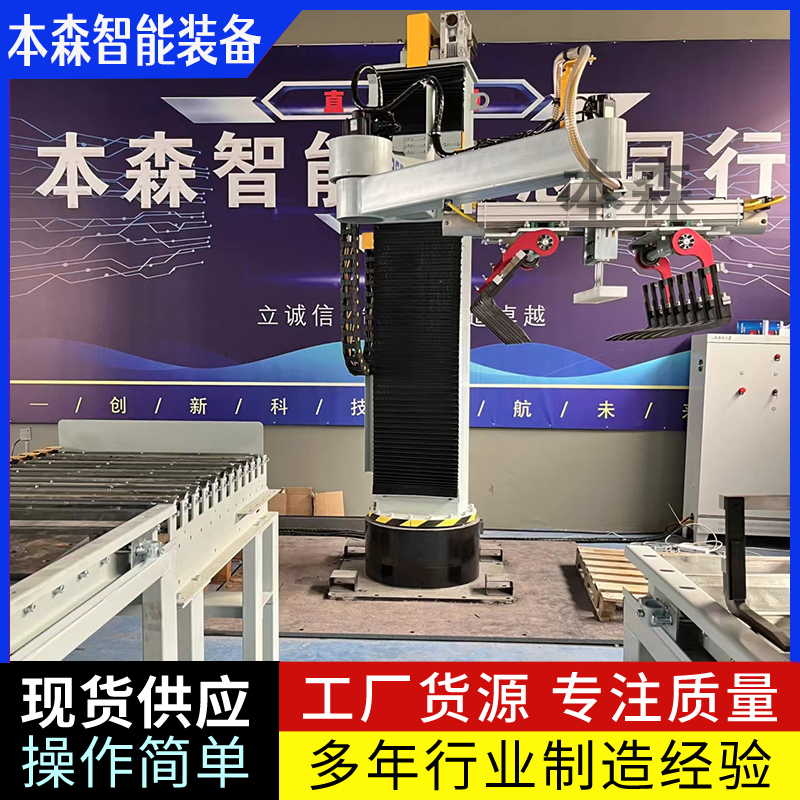

? Robotic palletizers

Industrial robots (such as six-axis robots), equipped with special grippers or suction cups, can accurately and efficiently place the packaged sulfur bags on the pallet according to the preset palletizing mode to form a regular stacking shape.

? Conveyor lines

Including belt conveyors, roller conveyors, etc., the packaged sulfur bags are transported from the packaging station to the palletizing station, and the pallets full of sulfur are transported to the designated position after the palletizing is completed.

? Control systems

? The whole production line usually adopts a central control system, integrating PLC (programmable logic controller), HMI (human-computer interaction interface) and other equipment to realize the coordinated control, data collection, fault alarm, production statistics and other functions of each equipment to ensure the stable operation and efficient management of the production line.

? Safety and environmental protection measures

? Sulfur may produce dust during the treatment process, so the production line should be equipped with effective dust collection equipment (such as pulse bag filter) and good ventilation system to ensure a safe and environmentally friendly working environment.

? Comply with relevant fire and explosion protection regulations, such as the use of explosion-proof electrical equipment, the installation of fire protection facilities, etc.

To sum up, a 40KG sulfur packaging and palletizing production line is a modern industrial system integrating raw material supply, quantitative packaging, quality inspection, automatic palletizing and intelligent control, aiming to improve production efficiency, ensure product quality, reduce labor intensity, and meet the requirements of safe production and environmental protection.


 上一篇:面粉包裝碼垛生產線Flour packaging and palletizing production line
 下一篇:化工硫磺粉的垛碼機Palletizing machine for chemical sulfur powder
